Features

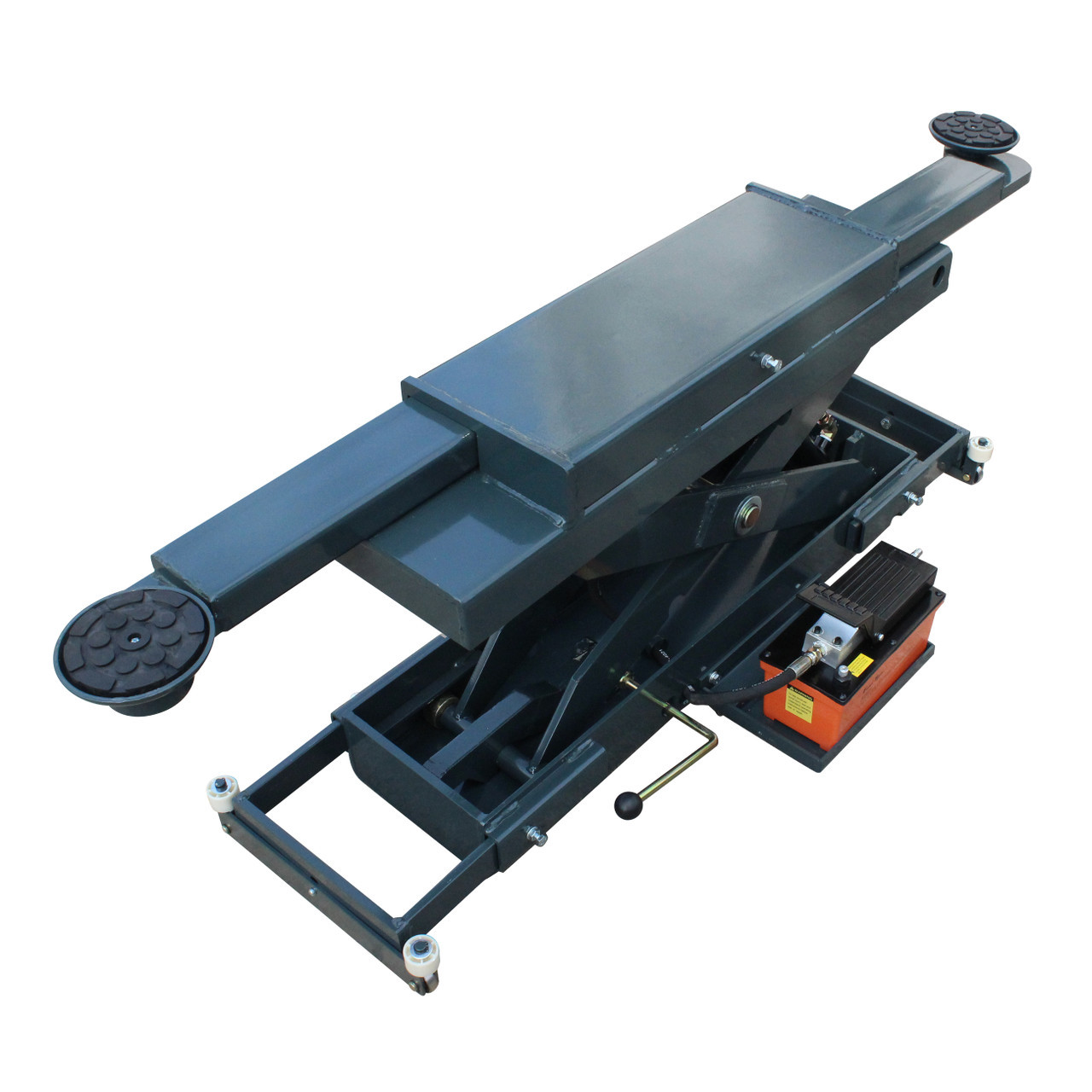

13,500 LBS capacity rolling bridge jack is ideal for use on the SAE-414C, SAE-414, SAE-414A four post lift, especially if your vehicles have an unbalanced center of gravity.
This jack is ideal for heavier trucks and SUVs.

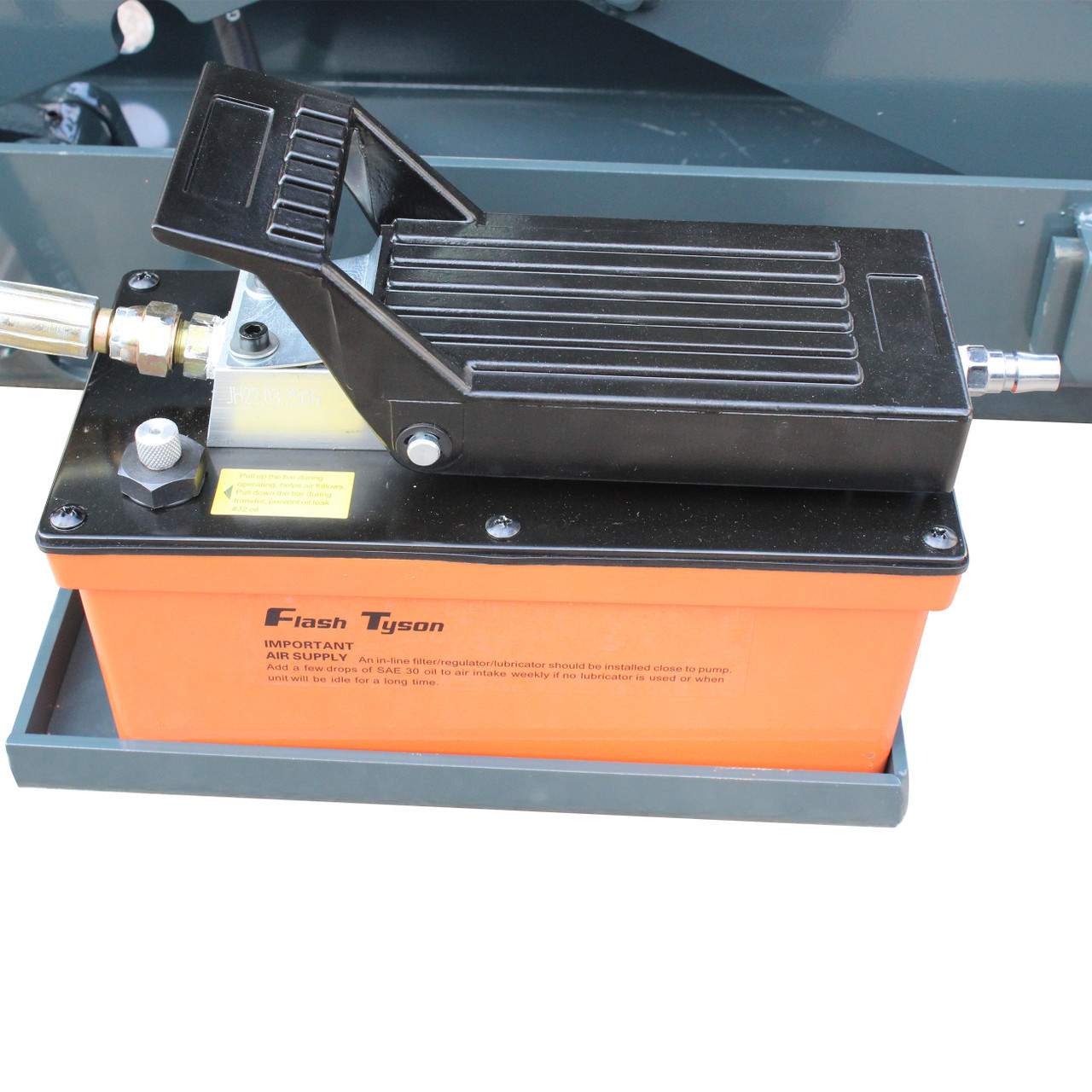

Pneumatic safety lock release
Technical Specification
Fits Stratus 4 Post alignment lift SAE-414C, SAE-414, SAE-414A
Lifting Capacity: 13,500 LBS

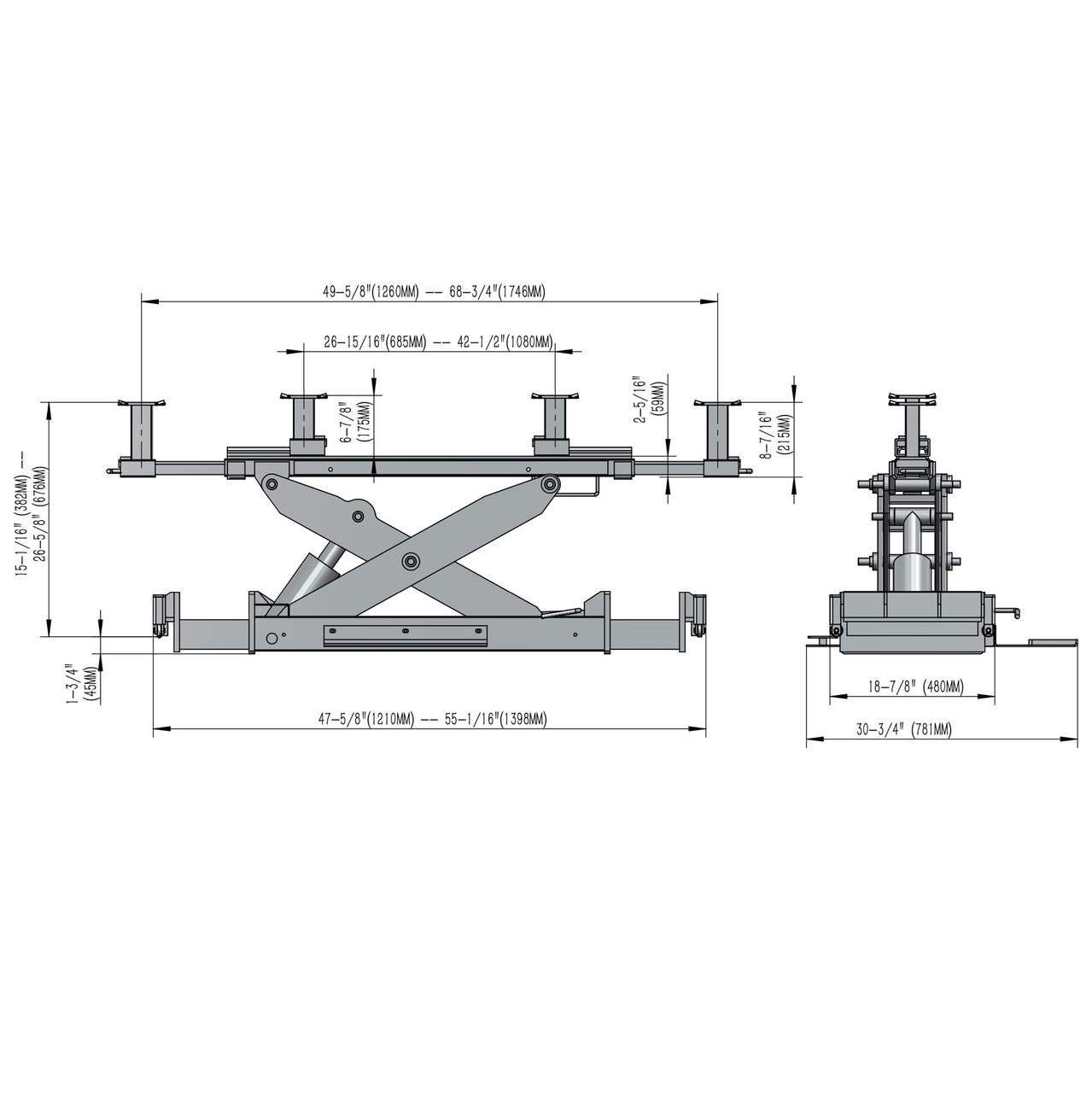

Overall Length: 30 11/16″ – 55 1/2″
Air Pressure: 85.3 – 113.7 PSI (6-8 KG/CM²)
Max Lifting Height: 14 3/4″
Lifting Time: 20 SEC
Lowering Time: 10 SEC
Shipping Size: 54″L * 33″W * 18″H
Shipping Weight: 464 LBS
