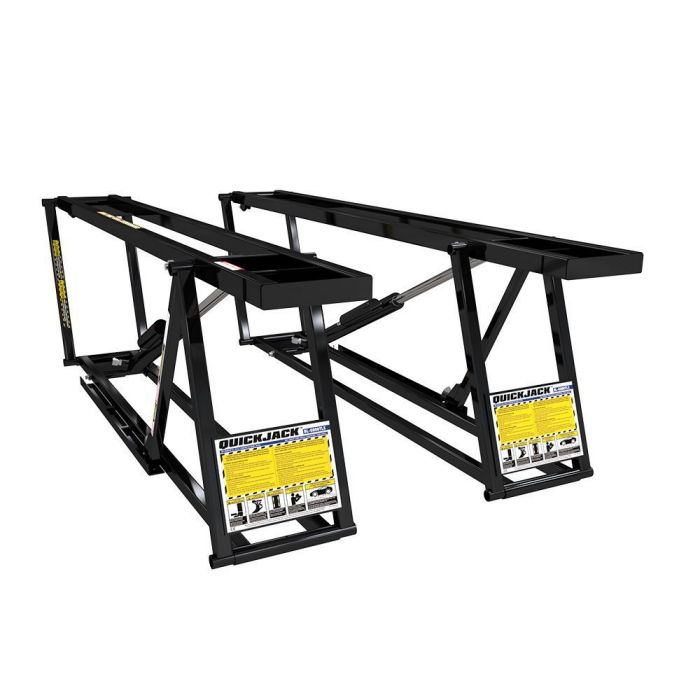

The QuickJack 5000TLX Extended Portable Car Lift System is recommended for use with sedans and sports cars with longer wheelbases. The extended-length version of the 5000TLX offers an extra 6 inches of reach for vehicles with longer wheelbases. The additional length makes it ideal for some full-size sedans, your daddy’s big old Cadillacs and more. Users will lose some ability to work on small-wheelbase vehicles, so this model is only recommended if you’re sure that’s not going to be an issue.

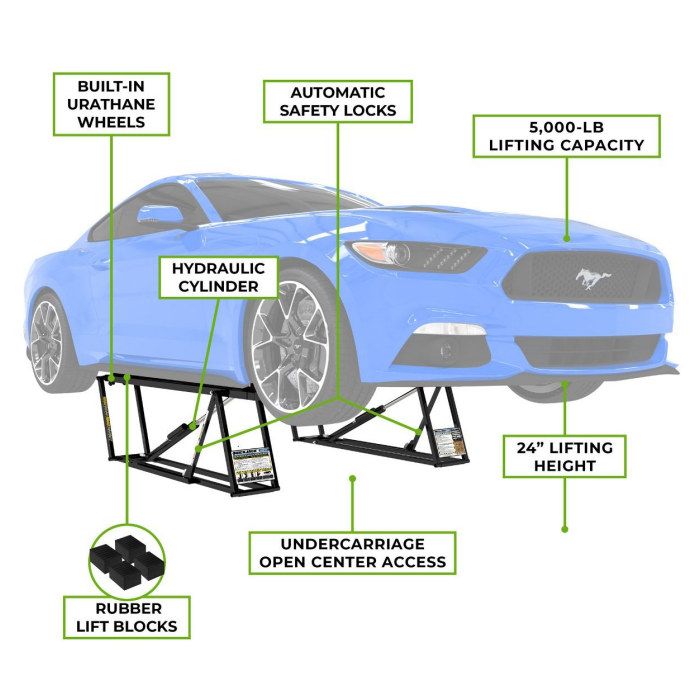

Features

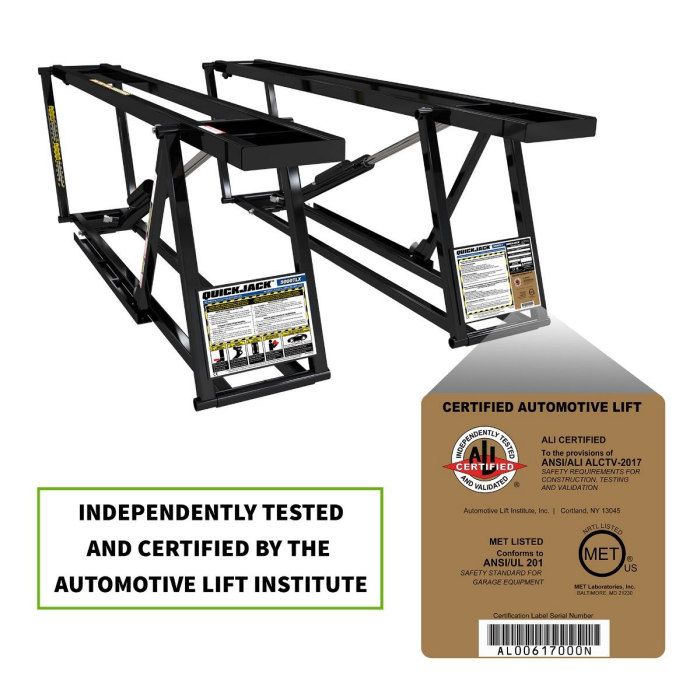

- 5,000 lbs. Capacity ALI Certified
- From Stow To Go In Less Than 60 Seconds
- Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
- Dual Locking Positions – Mid Level And Full Rise
- Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach
- Portable Power Unit Features A Remote Push-Button Control For Simple Operation
- Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
- Remote Pendant Control Features A 13-Foot Cord
- Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
- Open-Center Design For Clear Under Car Access
- Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up
- Convenient Handles Allow For Easy Positioning Of The Jack Frames
- Strong 14-Gauge Welded Steel Frames
- It’s A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
- Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
- Low-Profile Jack Frames Fit Under Most Race Cars
- Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
- Integrated Power-Assist Canisters Increase The Lowering Speed
- Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
- A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
- Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
- Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
- Durable Powder Coat Finish
Note: This unit is configured with a 110V AC power unit.
Also Available 208-240V AC 50/60Hz

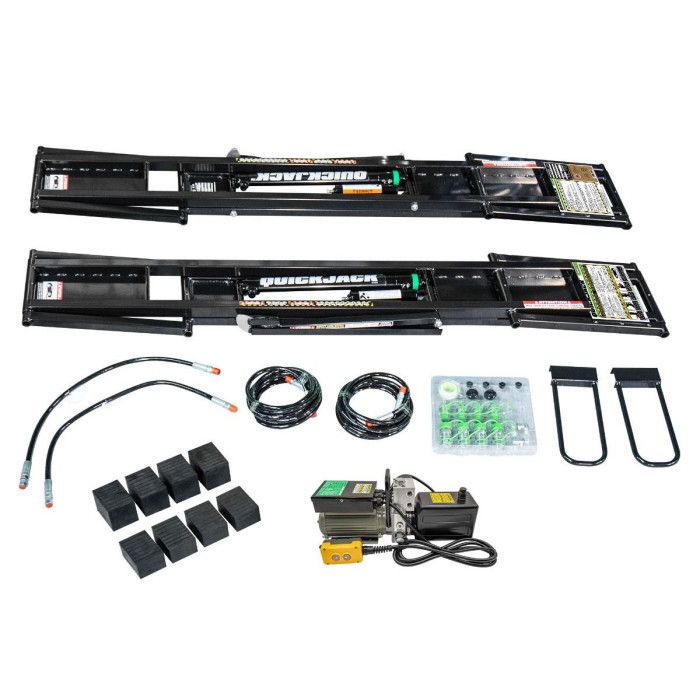

What’s Included
- 5000TLX Left Frame Assembly
- 5000TLX Right Frame Assembly
- 1x Hydraulic Power Unit With Control
- 4x Medium Rubber Lift Blocks (2″)
- 4x Tall Rubber Lift Blocks (3″)
- 2x Short Hydraulic Hoses
- 2x Long Hydraulic Hoses
- 2x Frame-Positioning Handles
- Fittings And Thread Tape For Setup
- Instruction Manual
Requirements
- (3) Liters Of Automatic Transmission Fluid
- Air Source To Inflate Air Cylinders Up To 50 PSI
- Assembly Tools
Specifications
| Model Number | 3500SLX | 5000TL | 5000TLX | 7000TL | 7000TLX | 6000ELX |
|---|---|---|---|---|---|---|
| Lifting Capacity | 3,500 lbs. | 5,000 lbs. | 5,000 lbs. | 7,000 lbs. | 7,000 lbs. | 6,000 lbs. |
| A – Lowered Height (Frame Only) | 3″ | 3″ | 3″ | 3.5″ | 3.5″ | 3.5″ |
| B – Lowered Height (with 2″ Block) | 3.5″ | 3.5″ | 3.5″ | 3.75″ | 3.75″ | 3.75″ |
| D – Lifting Height (with 2″ Block) | 17.5″ | 21″ | 21″ | 21.5″ | 21.5″ | 21.5″ |
| E – Lifting Height (with 3″ Block) | 18.5″ | 18.5″ | 22″ | 22″ | 22.5″ | 22.5″ |
| F – Max. Height | 21″ | 24″ | 24″ | 24.5″ | 24.5″ | 24.5″ |
| G – Lifting Height (with Adapters) | N/A | 24″ | 24″ | 24.25″ | 24.25″ | 24.25″ |
| G – Lifting Height (with Adapters + Pin) | N/A | 26.75″ | 26.75″ | 27″ | 27″ | 27″ |
| I – Lift Point Spread (Max) | 50.5″ | 60″ | 66″ | 60″ | 66″ | 76″ |
| J – Lift Point Spread (Min) | 27″ | 37″ | 43″ | 37″ | 43″ | 53″ |
| K – Frame Width | 10.5″ | 11″ | 11″ | 12.5″ | 12.5″ | 12.5″ |
| L – Frame Length | 62.5″ | 70″ | 76″ | 70.75″ | 76″ | 86.75″ |
| Frame Weight | 60 lbs. | 78 lbs. | 81.5 lbs. | 98 lbs. | 103 lbs. | 112 lbs. |
| Time To Full Rise | 30 seconds | 30 seconds | 30 seconds | 30 seconds | 30 seconds | 30 seconds |
| Power Unit Weight | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. | 15 lbs. |
| Total Shipping Weight | 180 lbs. | 240 lbs. | 250 lbs. | 280 lbs. | 304 lbs. | 318 lbs. |
- Warranty: (1) Year Limited
