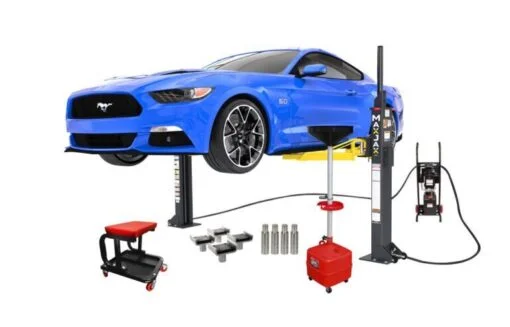

The Patented One-of-a-Kind MaxJax Portable Car Lift
Safety Features from the Ground Up
- No one in the industry has a more sophisticated and comprehensive research and quality control program than MaxJax, and our thousands of customers worldwide prove it.
- Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
- Hydraulic cylinders feature integrated velocity-fuse safety valves.
- A robust, gear-type flow divider precisely distributes hydraulic pressure providing consistent, equalized lifting.
- Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
- Arm restraints automatically engage each time the lift is raised.
- Detailed installation, maintenance and safety instructions accompany each MaxJax car lift.
- MaxJax encourages all owners to know their equipment and to follow good safety practices when using any of our products. Your MaxJax car lift equipment has been designed and built with your safety in mind, but the ultimate responsibility for safe operation is with you, the operator.
Perfect for ADAS
Newer vehicles are constantly becoming more and more advanced. They’re also becoming more complicated to service with all their new upgrades. ADAS (Advanced Driver Assistance Systems) includes handy features such as forward collision warning (FCW), lane departure warning (LDW), automatic emergency braking (AEB), and more. When performing ADAS calibration you’re telling sensors where to look, and with the complex nature of the systems, you’re going to want to make sure to have as precise readings as possible. To perform these calibrations, you’ll need plenty of space around the vehicle and you’ll need it to be perfectly level, and that’s where the MaxJax M7K comes in. Since it’s portable, you can simply position it in an optimal area to make sure you have plenty of unobstructed space. Some will perform calibrations while the vehicle remains between a two-post lift, but sometimes the posts could get in the way of the sensors. With MaxJax, you retain a larger floor space.
Pop-Up Bay Ready
You never want to lose out on business due to not having enough space. Take advantage of the portability offered with the MaxJax and you’ll be able to create pop-up bays on demand. You can virtually double your work area when you need to. Unlike standard two-post lifts, you can easily set your MaxJax aside when you don’t need the extra space.
MaxJax is protected by one or more patents or claims of patents in the U.S. and elsewhere. This is provided to satisfy the virtual patent marking provisions of various jurisdictions, including the virtual patent marking provisions of the America Invents Act, as codified in 35 U.S.C. § 287(a).
| LIFTING CAPACITY | 7,000 lbs. (3,175 kg) |
|---|---|
| MAX LOAD PER ARM | 1,750 lbs. (794 kg) |
| A HEIGHT OVERALL | 89.5″ (2,273 mm) |
| B HEIGHT OF COLUMN | 64″ (1,626 mm) |
| C MIN. PAD HEIGHT | 5.5″ (139.7 mm) |
| D MAX LIFT HEIGHT (PAD ONLY) | 47.25″ (1200.15 mm) |
| E MAX LIFT HEIGHT (WITH 3″ ADAPTER) | 50.5″ (1,283 mm) |
| F ARM REACH (MIN – MAX) | 26″ – 40″ (660 mm – 1,016 mm) |
| G TYPICAL WIDTH (OUTSIDE OF BASE PLATE) | 105″ – 135″ (2,667 mm – 3,429 mm) |
| H DRIVE-THRU CLEARANCE | 74″ – 104″ (1,880 mm – 2,642 mm) |
| LOCKING POSITIONS | 7 (every 3″) |
| MOTOR | VAC / 50-60 Hz. / 1 Ph. / 15 Amps |
| TIME OF FULL RISE | 45-seconds |
| INDIVIDUAL COLUMN WEIGHT | 300 lbs. (136 kg) |
| SHIPPING WEIGHT (STANDARD MODEL) | 980 lbs. (444 kg) |
| SHIPPING DIMENSIONS (STANDARD MODEL) | 68″ x 39″ x 35″ (1,727 mm x 990.6 mm x 889 mm) |
Baseplate dimensions*
| A | 371 mm (14.5″) |
|---|---|
| B | 330 mm (13″) |
| C | 150 mm (6″) |
| D | 24 mm (1″) |
| E | 165.5 mm (6.5″) |
| F | 20 mm (0.75″) |
| G | 20 mm (0.75″) |
