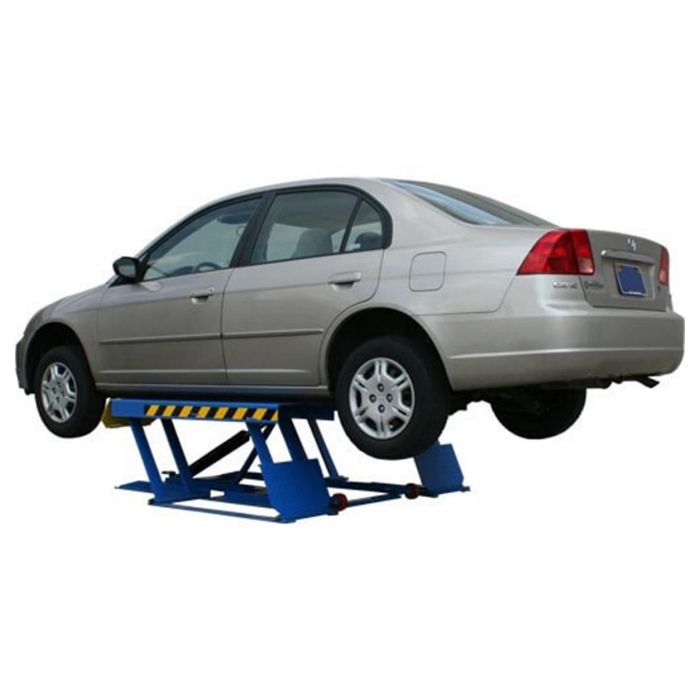

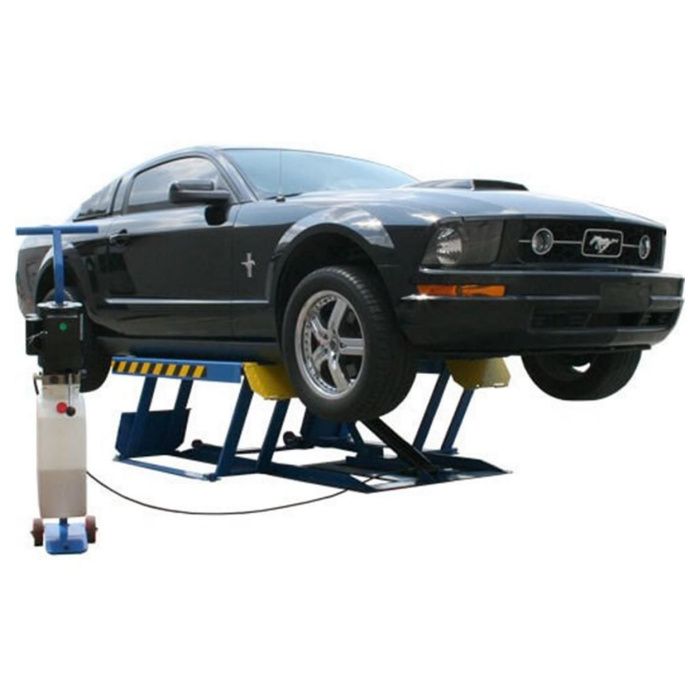

The Atlas LR06 Portable Low-Rise Scissor Lift with 6,000 lbs. capacity is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height.
Features
- 6,000 lbs. Capacity
- Portable Standard Wheels and Power Unit
- 4″ Low-Profile Frame
- Multi-Position Manual Safety Locks
- 110 Volt Electric Operation
Specifications
- Capacity: 6,000 lbs.
- Maximum Lifting Height: 24″ (2′)
- Locking Position Heights: 12 1/4″, 18 1/2″, and 22 1/4″

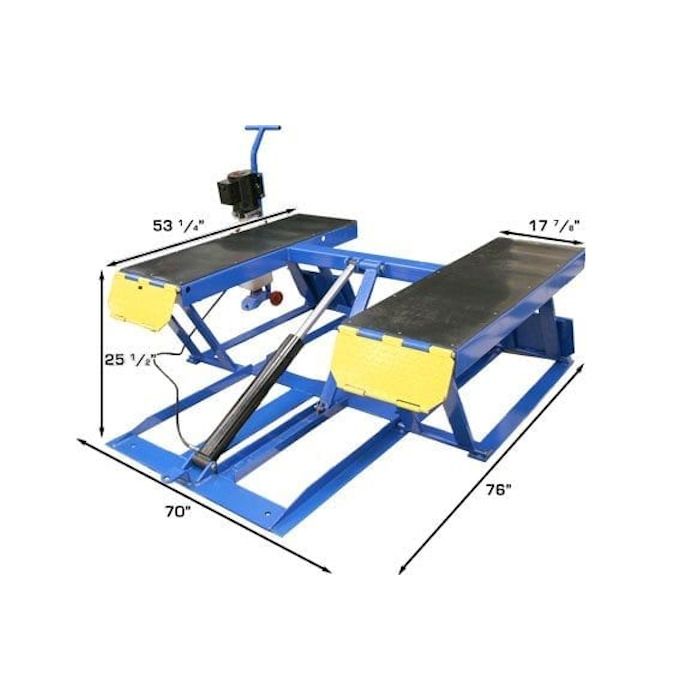

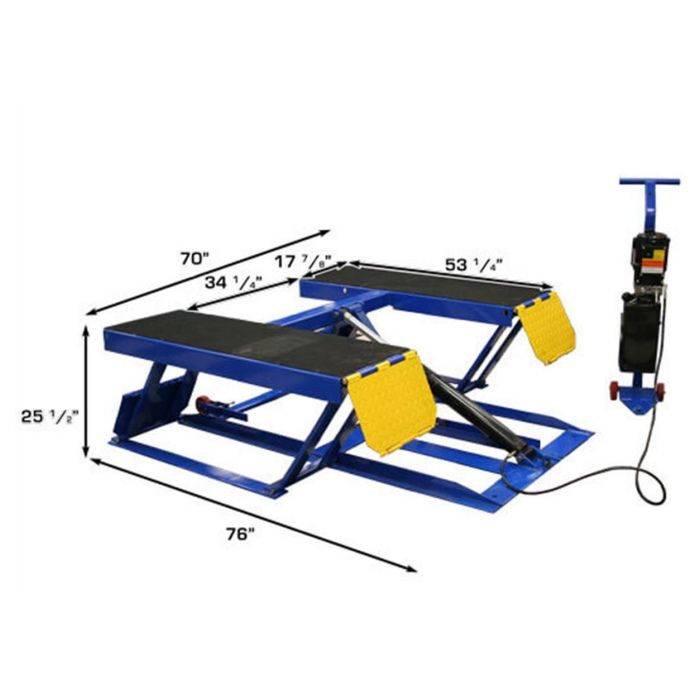

- Overall Pad Length: 53 1/4″ (4′ 5 1/4″)

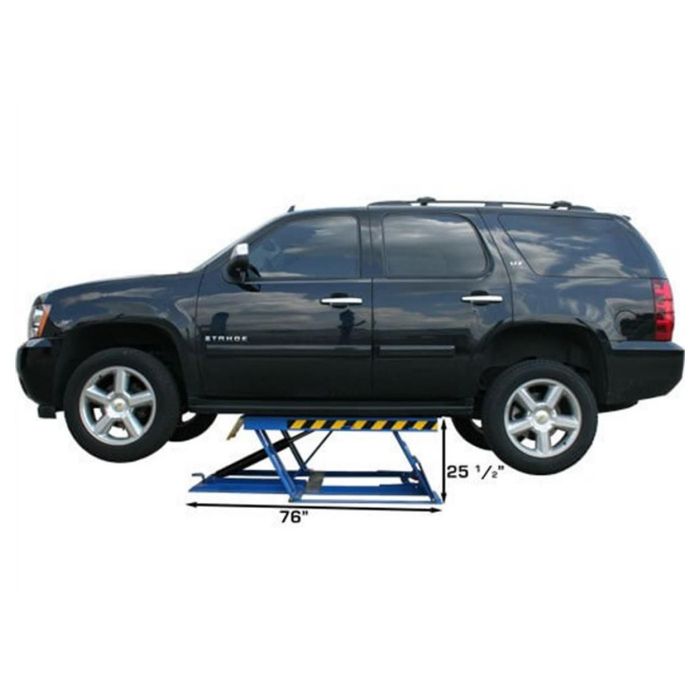

- Overall Width: 70″ (5′ 10″)
- Overall Length: 79 3/4″ (6′ 7 3/4″)

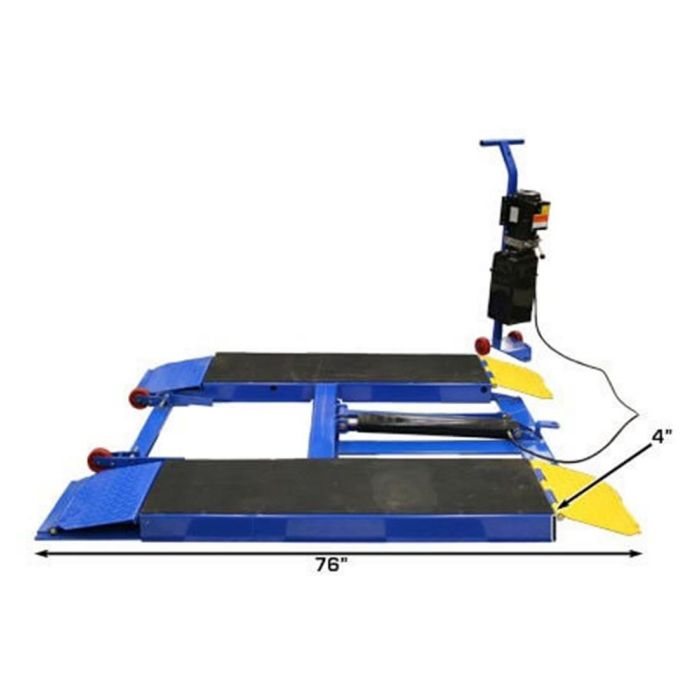

- Lowered Height: 4″
- Motor/Electrical Requirement: 110volt (PLUG NOT INCLUDED)
- Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 965 lbs.
- Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor
