This product also features an ALLY Hydraulic AL2850 Power Unit.This power unit also carries an industry leading two-year limited warranty.
- ALI Certified Lift
- 10,000 lb. Capacity
- Column design with special Double “S” bends increasing column strength
- Can be installed Symmetrically OR Asymmetrically

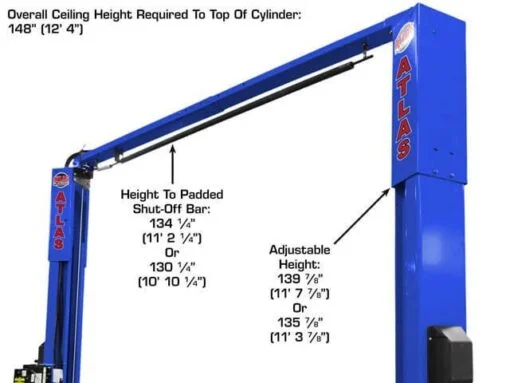

- Overall Height: 135 7/8″ (11′ 3 7/8″) or 139 7/8″ (11′ 7 7/8″) (Cylinder Height 12′ 4″)
- Padded Carriages
- 3-Stage Front Arms & 2-Stage Rear Arms
- Single-Point Lock Release
- Powder Coat Finish
- Includes Double Screw-up Adapters
- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- Shipping Weight: 1,850 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
| Atlas® Platinum PVL10 Specifications | ||
| Capacity | 10,000 LB. | |
| Overall Height | 135 7/8″ (11’ 3 7/8”) or 139 7/8” (11’ 7 7/8”) – (CYLINDER EXTENDS TO 12’ 4”) | |
| Overall Floor Width | 139″ (11’ 7”) Asymmetric/137 1/2” (11’ 5 1/2”) Symmetric | |
| Outside Column to Outside Column | 130″ (10’ 10″) Asymmetric/129 1/4” (10’ 9 1/4″) Symmetric | |
| Maximum Lift Height (Without Adapters) | 72 1/2″ | |
| Maximum Lift Height (With Adapters) | 81 1/2″ | |
| Minimum Arm Height | 4″ | |
| Inside Column | 107 3/4” (8’ 11 3/4”) Asymmetric/ 112 1/2″ (9’ 4 1/2″) Symmetric | |
| Drive Thru | 91” Asymmetric/99 1/2” Symmetric | |
| Column Size | 7″ x 10 1/4″ | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 15″ x 18″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,850 LBS. | |
| Adapter Heights | 4 Each 3”, 6” | |
| Arm Hole/Adapter Peg Size | 2” | |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||
